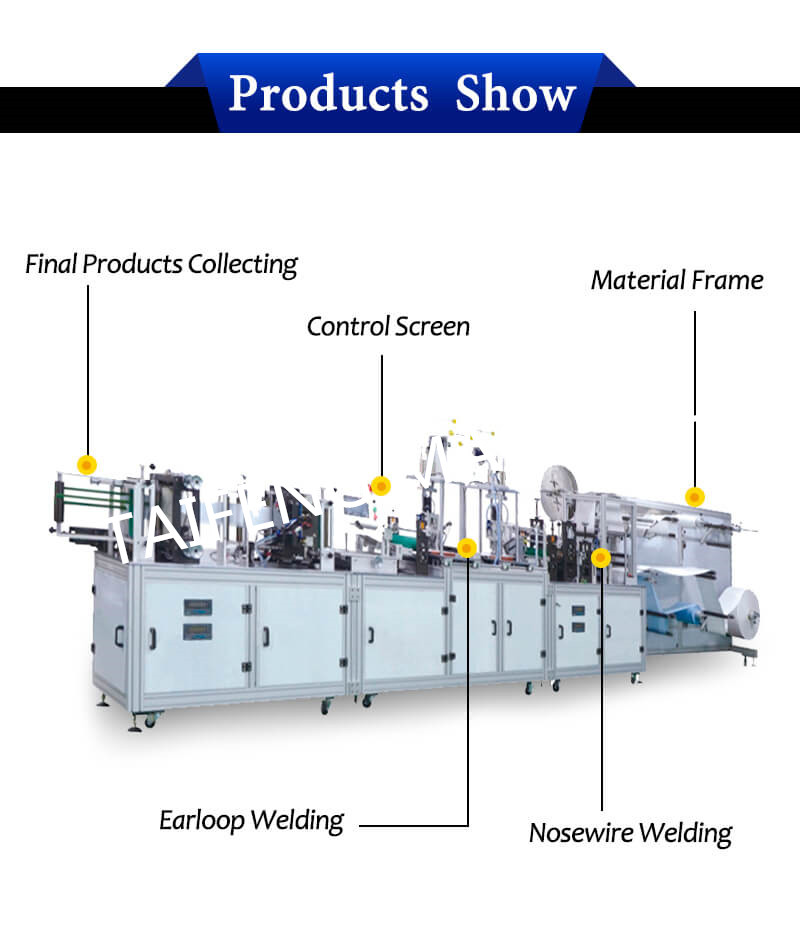

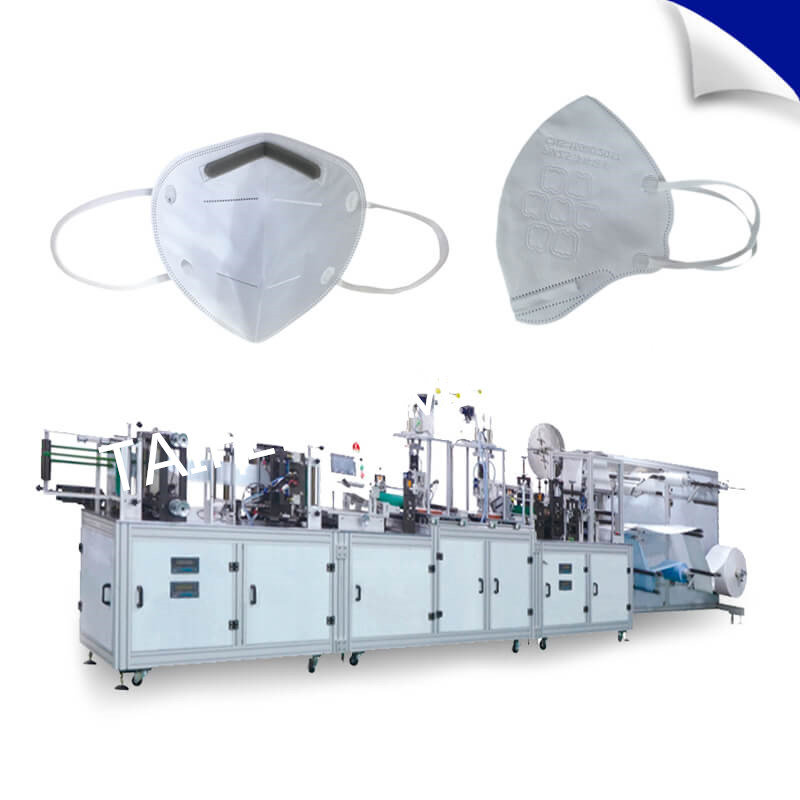

Fully Automatic Foldable Respirator Face Production Line
Model | TF-FFM-101001 |

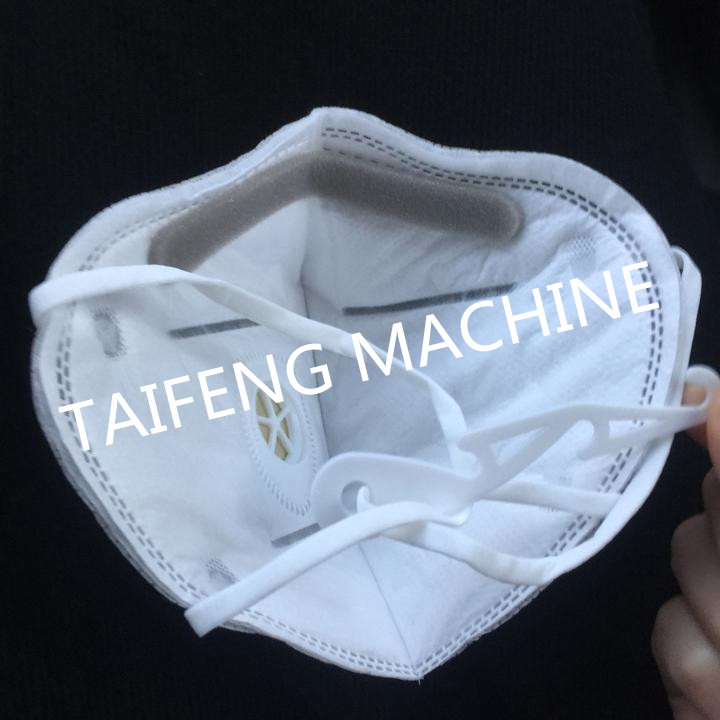

Product Type | Foldable respirator Mask |
Product Size | Folded Size160mm×105mm |
Productivity | 40-50 pcs/min |
Raw Material | Hydrophilic non-woven fabric, melt-blown non-woven fabric, thermal bonding non-woven fabric |
Layers | 3-6 Layers |
Process Mode | Ultrasonic welding + cutting |
Welding Patterns | Customized by sample |
Earloop Fix | Ultrasonic welding |
Operation Screen | 10 inches touch screen |
Air Pump | 0.6MPa |
Power consumption | 10kW |
Power Supply | 220V/50Hz |
Installation Area | 13000mm×2000mm×2100mm |
This product is a semi-automatic machine for the production of folding mask production lines. It uses ultrasonic technology to weld 3 to 5 layers
of PP non-woven fabrics, melt-blown fabrics, activated carbon and filter materials, non-woven fabrics, earbands, printing, folding, An integrated semi-automatic folding mask production line for edge sealing and rolling, which can process n95, kn95, n90 and other masks.
Work flow: incoming material-unwinding-multilayer fusion-slicing
Equipment advantages:
This machine is a semi-automatic machine for producing finished mask products. The equipment runs stably and has continuous
operation for a long time, and the product qualification rate is over 99.9%. The interface cover is fused by ultrasonic fusion. Mask
making is fully automated and can be completed in one operation without any manual operation.
Feeding system: The machine adopts the profile assembly structure, which is beautiful and sturdy. The automatic feeding
system, the tensioning wheel is set, and the tension of the fabric width is adjusted, so as to effectively ensure the beauty
and flatness of the finished product.
