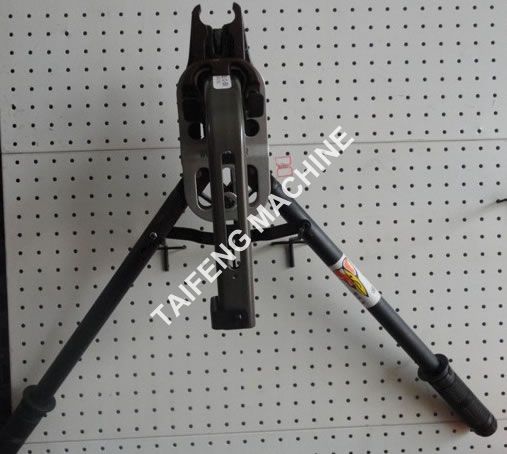

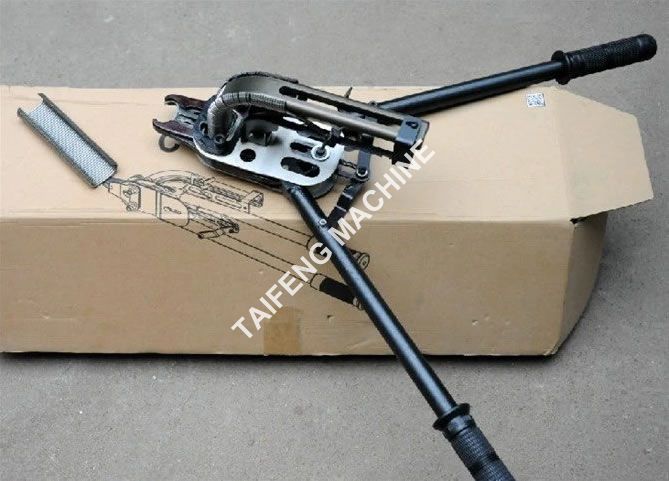

C" clip gun by hand
Usage: The C clip gun by hand
It is used for connection of the gabion boxes and cloth edges
| MODEL | FASTENER | TOOL SPECIFICATIONS | ||||
| Fastner model | W (mm) | H (mm) | Crown (mm) | QTY | Tool size (mm) | |
| M-65 | CL-23 | 4.8 | 12.7 | 22 | 50 | 374X87X187 |
| CL-24 | 4.8 | 15.5 | 22 | |||
| CL-73 | 4.8 | 12.7 | 19 | |||
| CL-74 | 4.8 | 15.5 | 19 | |||
| M-66 | CL-3 | 6.2 | 12.3 | 22 | 50 | |
| CL-4 | 6.2 | 14.1 | 22 | |||
| CL-71 | 6.2 | 12.3 | 19 | |||
| CL-72 | 6.2 | 14.1 | 19 | |||
| M-88 | CL-38 | 8.03 | 20.64 | 21.84 | 50 | |
